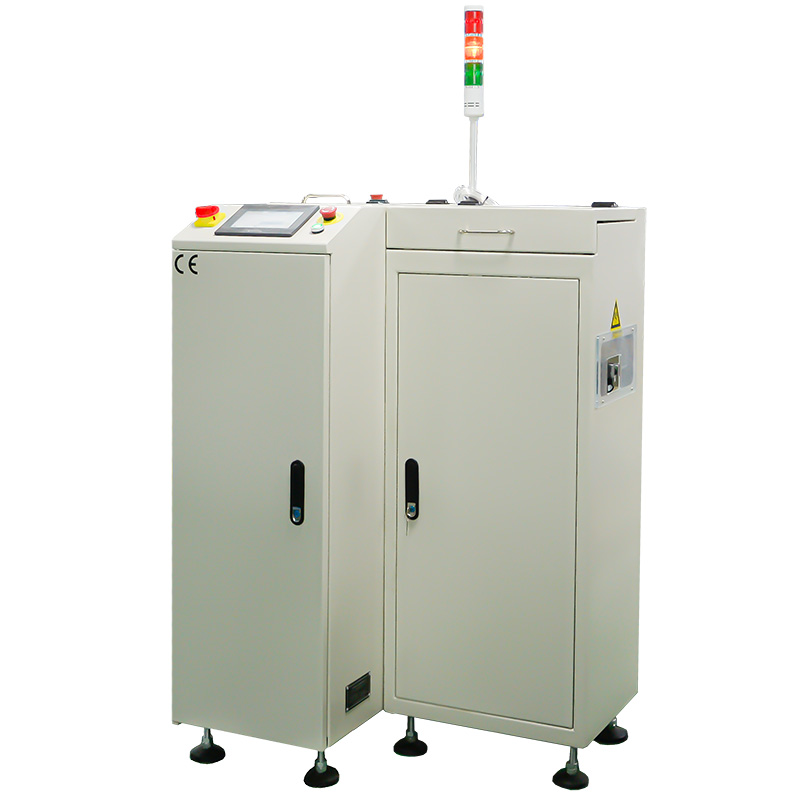

Lead Frame Loader& Unloader
Used before AOI or other inspection machine, or printer. Load substrates, leadframes or carriers into the inspection or printer for work. After work, unload substrates, leadframes or carriers into the same layer of the rack
Includes
> Omron PLC
> 3-Color Light Tower Display for Machine Status
> 7” HIMI Touchscreen Interface
> Width Adjustment by Hand Crank
> Pressure Regulated SMC Pneumatic Pusher
> 4.8mm ESD Flat Belt
> 2 Meters Long SMEMA Cable
> Handle Max PCB Weight: 1 kilo
> Front rail fixed, Left to right loader, right to left unloader
> Conveyor Motor: Leisai stepper motor
> Lift Motor: Panasonic servo motor
> Pusher: servo motor+ air gripper as PCB loads and unloads pusher
> Air gripper movement: Leisai stepper motor and ball screw
> Traverser movement: Leisai stepper motor, ball screw and slide rail
Application Description:
Loader mode use the air gripper to clamp the board and pull it into the rail. Unloader mode uses the air clamp to push the board.
Operator puts the magazine into the lifting table. Press START button. Table goes up to the 1st layer. The air gripper open and go up to the magazine location. Gripper clamps the board and moves to the rail. When it arrives, gripper open and continues to move out of the board location. Gripper go down. Board flows into the output wait for signal to send out.
The magazine rail can store 11 magazines at the same time. It uses traverser mode to connect the component pick up location. When the 11 magazines are full, press start button. The traverser table moves. The 1st magazine is aligned with the feed rail and start to send out the board. After the 1st magazine finishes, the traverser moves the 2nd magazine to the feed rail location, this goes on and on until the 11 magazines. Machine stops and alarm the operator to exchange the magazine.
|
Description |
Lead Frame Loader& Unloader UL32L11 |
|
Model No |
UL32L11 |
|
Max PCB Size (LxW) |
240×26.5 mm |
|
Magazine Size (LxWxH) |
242.8×33.2×118.72±0.15mm |
|
Pitch |
5.08mm |
|
PCB Loading Time |
± 7 seconds |
|
Magazine Change-Over |
± 25 seconds |
|
Magazine Capacity |
23 magazines (11 magazine on the lifter platform, 1 empty magazine on the upper output magazine conveyor, 11 full magazine on the lower input magazine conveyor) |
|
Power Supply |
AC220 ±10v, 50 Hz /110V ±10v, 60 Hz |
| Air Supply |
5~6 kg/cm² (4~6 bar) |
| Conveyor Height |
890-950mm |
| Flow Direction |
Left to right |
| Fixed Rail |
Front |
| Machine Dimension (LxWxH) |
900x1000x1350mm |
| Net Weight |
291 kilos |
| Shipping Dimension(LxWxH) |
1050x1150x1550mm |
| Gross Weight |
352 kilos |
Line Central Auto Width Adjustment-Follow Me System
Safety Cover
Additional Magazine Capacity
Customized Magazine Size
Right to Left Flow
Other Options Available on Request
